LED Sonar Sensor Light

DENKO SONAR ONE SERIES

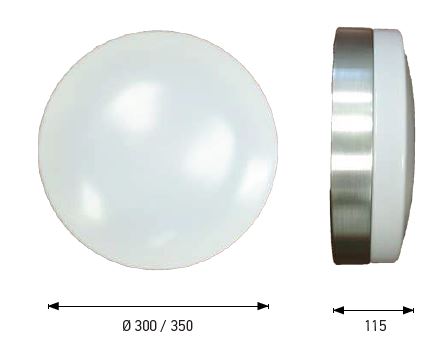

Dimensions (mm)

Optional

- Emergency Power Pack (Add Suffix “E”)

e.g. DENKO SONAR ONE 12E

Features and Application

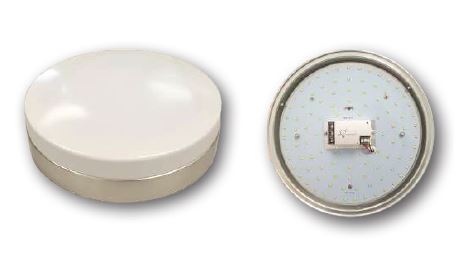

Denko Sonar One Series is a ceiling mounted LED luminaire with microwave sensor for motion detection.
• Elegant brush finish with spin aluminium housing allows excellent heat dissipation and is anodized for corrosion resistance.
• Preset detection zone (1m to Ø10m) to full brightness upon detection. If there is no further detected motion after a preset hold time (5s / 15s / 300s / 600s), the LED lamp will dim into a preset brightness (0% / 5% / 10% / 30% / 50%).
• Suitable for areas with low human traffic while adhering to safety requirements. E.g. Staircases, washrooms, car parks, corridors, walkways, overhead bridges, underpasses, etc.

Technical Specifications

Housing MaterialSpin aluminium with brush finishing
Mains Supply230V AC, 50/60Hz
LED Lamp Life30,000 hours
CCT K3000K - 6000K
MODELSONAR ONE 12SONAR ONE 15
Wattage (Max)12W15W
Wattage (Econ dimming mode)3W3W
Lumens (lm)13361700
Dimension300 x 115350 x 115

Ordering Information

MODELMODEL W/ EMERGENCY PACKLAMP
DENKO SONAR ONE 12DENKO SONAR ONE 12E12W LED
DENKO SONAR ONE 15DENKO SONAR ONE 15E15W LED
