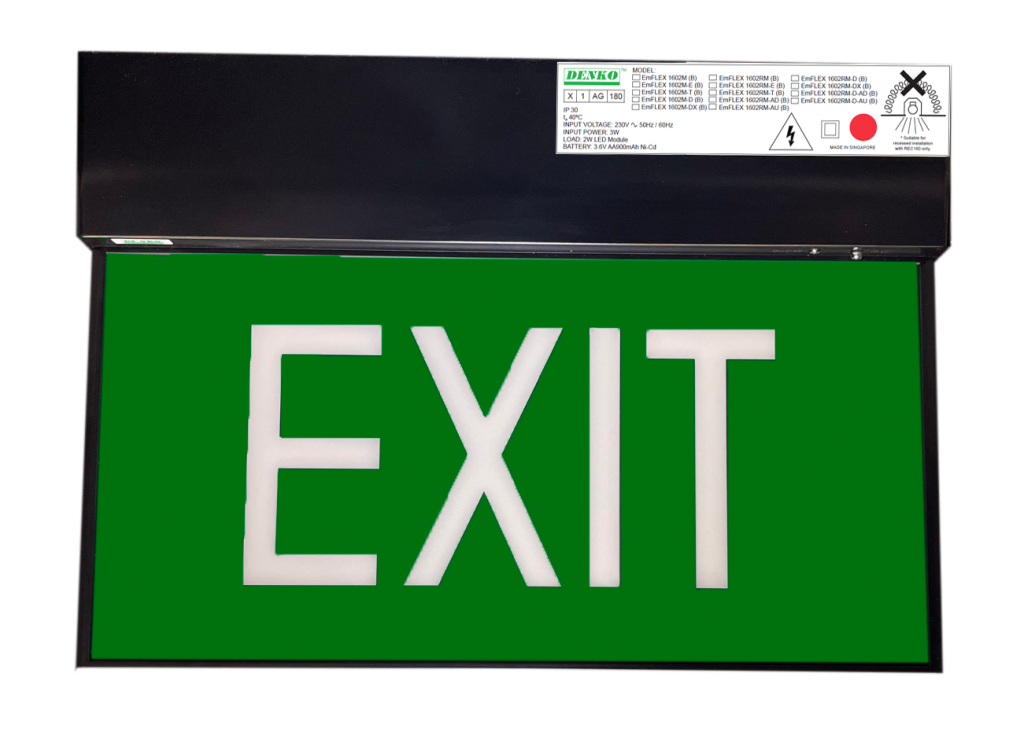

Slim Flex LED Emergency Exit Sign (Black)

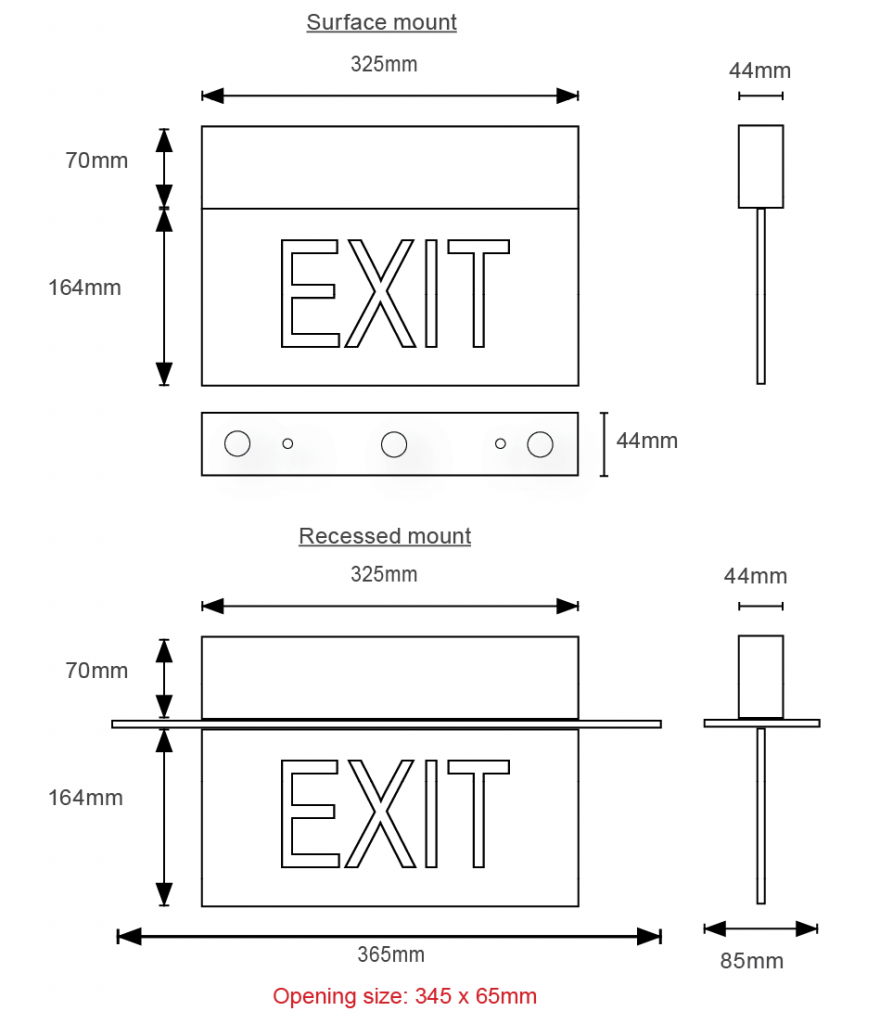

Dimensions (mm)
Options
- Recess plate REC160 (B) sold separately for recessed type of installations.
Features and Application
- Slim and lightweight LED emergency exit signs with option for Exit or Running Man signage in black casing.
- Anti-corrosive housing, good for installation in high humidity and damp environment.
- Designed for seamless and hassle-free installation and maintenance.
- Optional snap-on recess plate available.
- Samsung LED lamps provide high efficiency, durability and low energy consumption.
Technical Specifications
| Mode of Operation | Maintained |
| Lamp | Samsung 2W High flux white LED |
| Operating Temperature | ta 0°C ~ 40°C |
| Mains Supply | 230V AC 50Hz/60Hz |
| Power Consumption | < 3W |
| Battery | High temperature Ni-Cd battery |
| Charger | Fully automatic |
| Charging Monitor | Ø 5mm Green LED |
| Recharge Period | 24 hrs |
| Testing Facility | Test-switch for independent testing |
| Emergency Duration | 3 hrs |
| Safety Feature | Low-voltage cut-off to prevent over-discharge of battery |
| Construction | Polycarbonate |
| Weight (Nett/Gross) | 0.6 kg / 0.8 kg Recess plate: 0.1 kg |
| Compliance | SS 563-1:2010/A1:2017; SS 563-2:2010/A2:2017; IEC 60598-2-22:2021 |
| Installation | Ceiling, wall or pendant mounting |
| Cable Entry | 3 x 20mm Ø knockout hole |
| IP Rating | IP 30 |
| Legend | White text/graphical symbol over ISO green background |
| Warranty | 1 year |
Ordering Information
| MODEL | LEGEND |
| EmFLEX 1602M (B) |  |
| EmFLEX 1602M-E (B) |  |
| EmFLEX 1602M-T (B) |  |
| EmFLEX 1602M-D (B) (Double-sided with arrow) | |
| EmFLEX 1602M-DX (B) (Double-sided without arrow) | |
| EmFLEX 1602RM (B) |  |
| EmFLEX 1602RM-E (B) |  |
| EmFLEX 1602RM-T (B) |  |
| EmFLEX 1602RM-D (B) (Double-sided) | |
| EmFLEX 1602RM-AD (B) |  |
| EmFLEX 1602RM-D-AD (B) (Double-sided with arrow down) |  |
| EmFLEX 1602RM-AU (B) |  |
| EmFLEX 1602RM-D-AU (B) (Double-sided with arrow up) |  |
| EmFLEX 1602RM-DX (B) (Double-sided without arrow) | |
