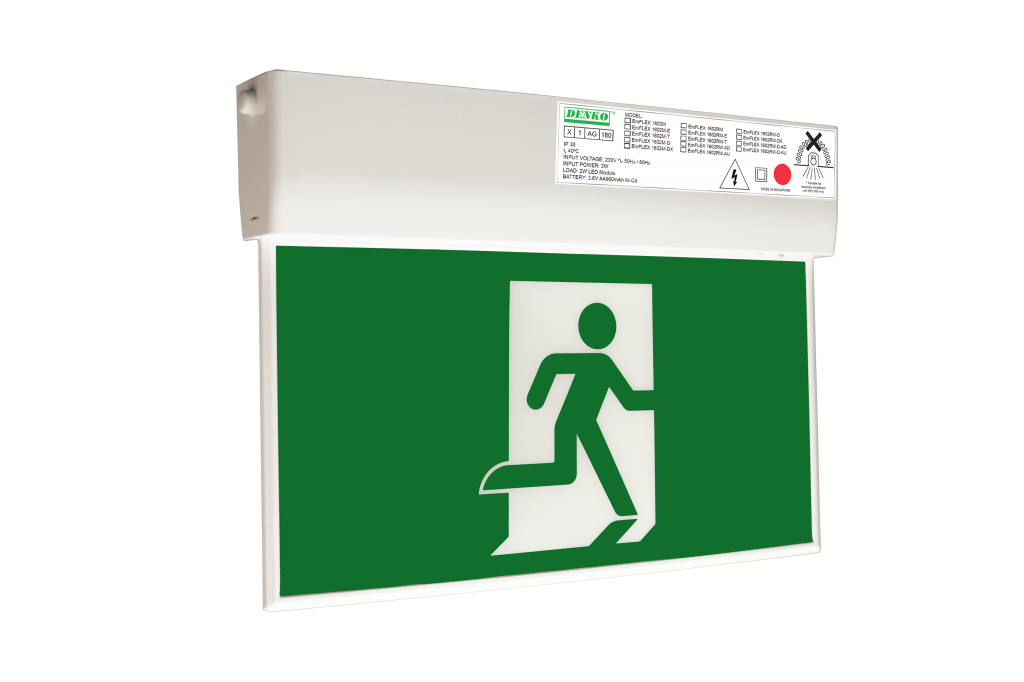

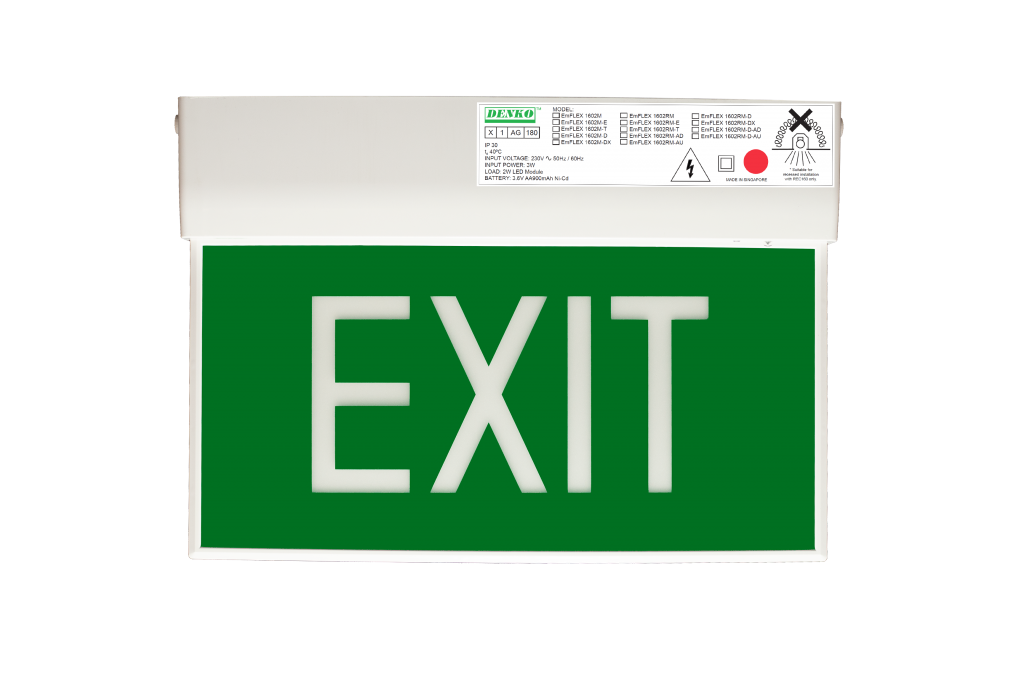

Slim Flex LED EMERGENCY Exit Sign

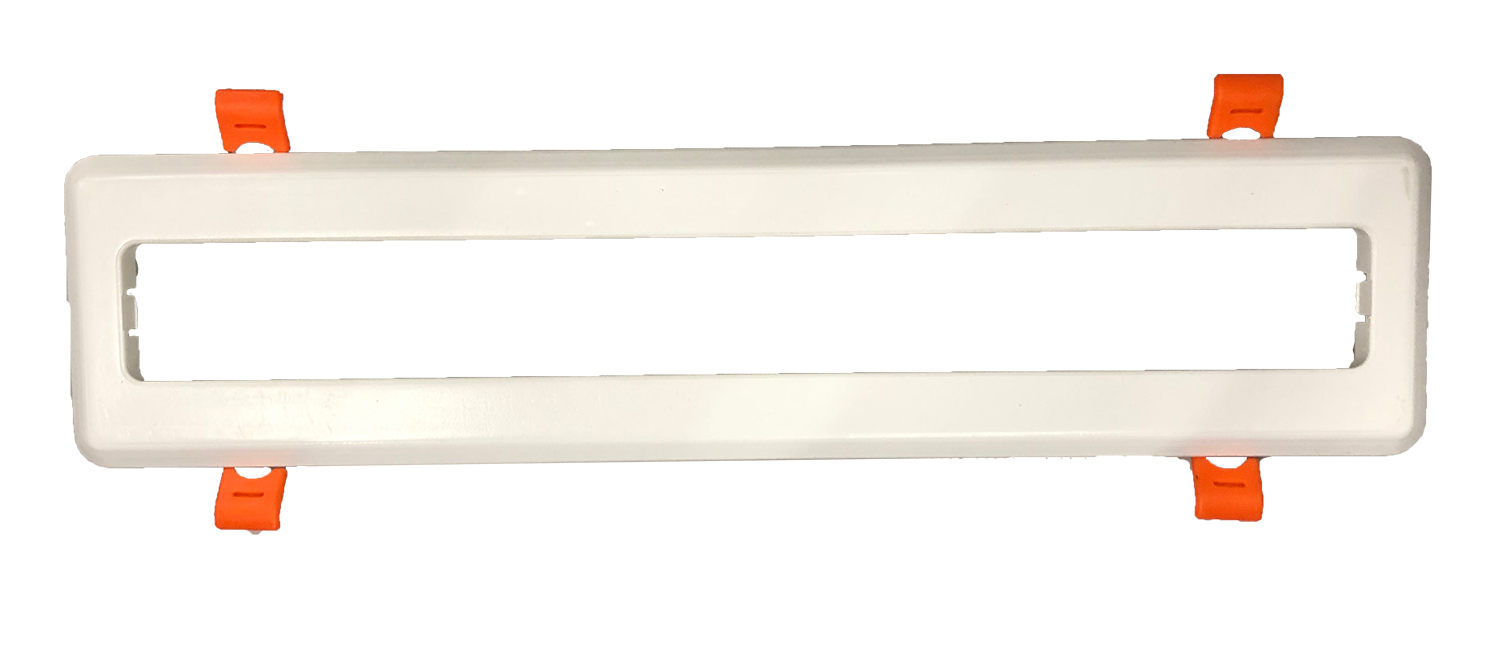

- Recessed panel and bracket
Features and Application
- All new slim and lightweight LED emergency exit signs with option for Exit or Running Man signage.
- Designed for easy installation and maintenance.
- Optional recess plate and bracket available.
- Samsung LED lamps provide high efficiency, durability and low energy consumption.
Mode of Operation Maintained
Lamp Samsung 2W High flux white LED
Operating Temperature ta 0°C ~ 50°C
Mains Supply 230V AC 50Hz/60Hz
Power Consumption Single-sided: < 4W
Double-sided: < 5W
Battery High temperature NICD battery
Charger Fully automatic
Charging Monitor Ø 5mm Green LED
Recharge Period 24 hrs
Testing Facility Test-switch for independent testing
Emergency Duration 3 hrs
Safety Feature Low-voltage cut-off to prevent over-discharge of battery
Weight (Nett/Gross) Single-sided: 0.6 kg / 0.8 kg
Double-sided: 0.86kg / 1.06kg
Compliance SS 563-1:2010;
SS IEC 60598-2-22:2016
Installation Ceiling, wall or pendant mounting
Cable Entry 3 x 20mm Ø knockout hole
IP Rating IP 30
Legend White text/graphical symbol over ISO green background
Warranty 1 year
EmFLEX 1602M EmFLEX 1602M-E EmFLEX 1602M-T EmFLEX 1602M-D (Double-sided version) EmFLEX 1602RM EmFLEX 1602RM-E EmFLEX 1602RM-T EmFLEX 1602RM-D (Double-sided version) EmFLEX 1602RM-AD EmFLEX 1602RM-D-AD (Double-sided with arrow down)
