Slim Flex Wide LED Emergency Exit Sign

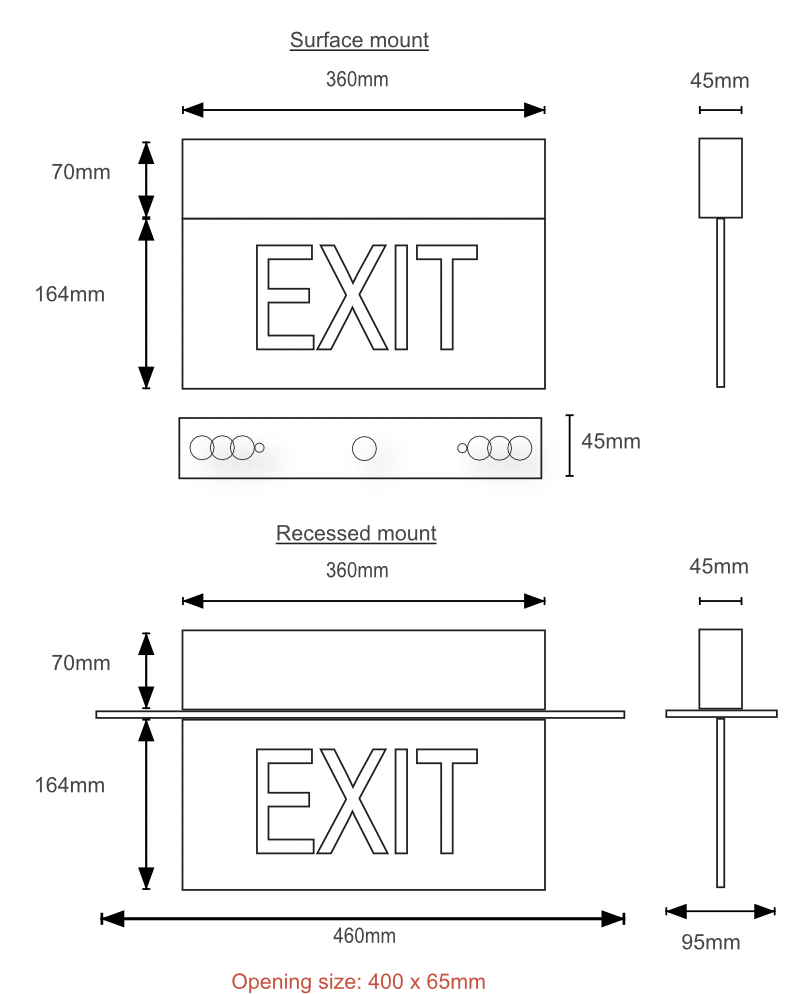

Dimensions (mm)

Options

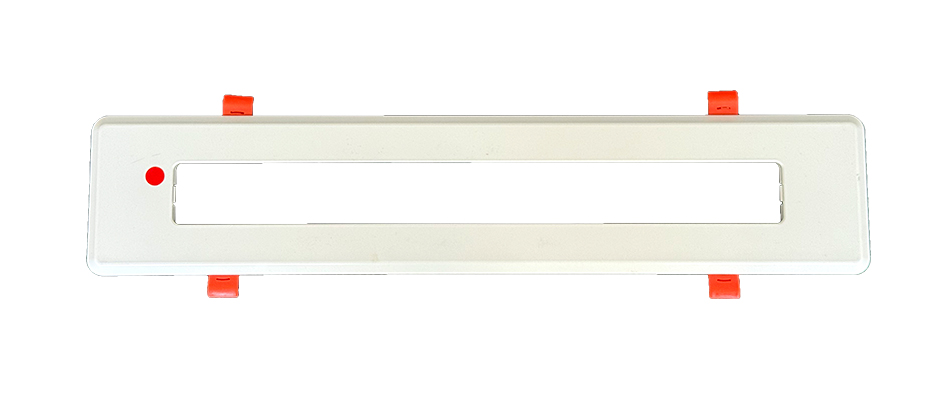

  • Recess plate REC360 sold separately for recessed type of installations.
  • For Ni-Cd battery version, add suffix (NICD). For LiFePO4 battery version, add suffix (LFP).

Features and Application

  • New, slim, wide and lightweight LED emergency exit signs with option for Exit or Running Man signage.
  • Anti-corrosive housing, good for installation in high humidity and damp environment.
  • Designed for seamless and hassle-free installation and maintenance.
  • Optional snap-on recess plate available.
  • Samsung LED lamps provide high efficiency, durability and low energy consumption.

Technical Specifications

Mode of OperationMaintained
LampSamsung 2W High flux white LED
Operating Temperatureta 0°C ~ 40°C
Mains Supply230V AC 50Hz/60Hz
Power Consumption< 3W
Battery High temperature Ni-Cd battery
High temperature LiFePO4 battery
ChargerFully automatic
Charging MonitorØ 5mm Green LED
Recharge Period24 hrs
Testing FacilityTest-switch for independent testing
Emergency Duration3 hrs
Safety FeatureLow-voltage cut-off to prevent over-discharge of battery
ConstructionPolycarbonate
Weight (Nett/Gross)0.65 kg / 0.85 kg
Recess plate: 0.1 kg
ComplianceSS 563-1:2010/A1:2017;
SS 563-2:2010/A2:2017; IEC 60598-2-22:2021
InstallationCeiling, wall, suspended or recessed mounting
Cable Entry7 x 20mm Ø knockout hole
IP RatingIP30
LegendWhite text/graphical symbol over ISO green background
Viewing Distance30 m
Warranty1 year

Ordering Information

MODELLEGEND

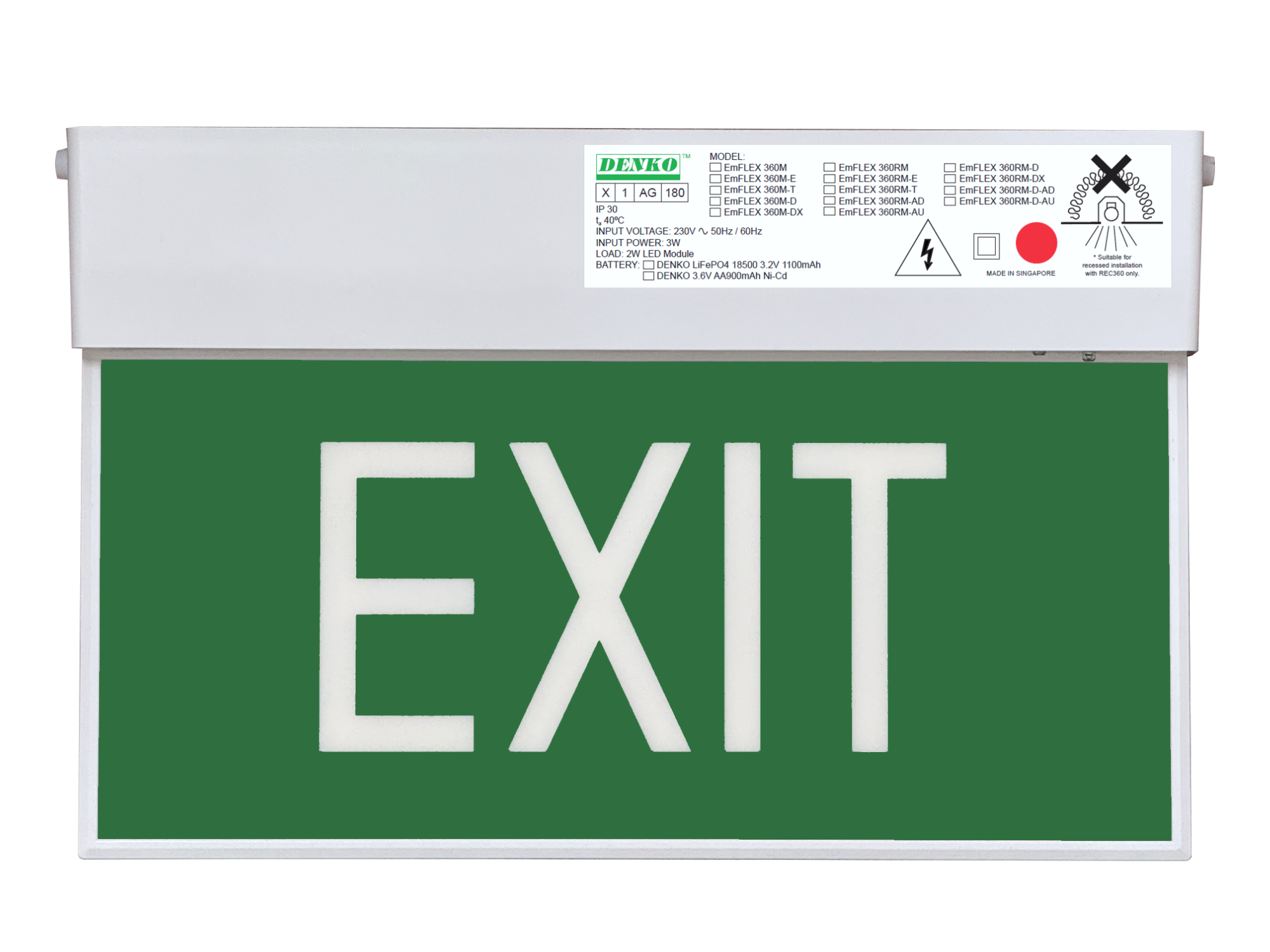

EmFLEX 360M
EmFLEX 360M-E
EmFLEX 360M-T
EmFLEX 360M-D (Double-sided with arrow)
EmFLEX 360M-DX (Double-sided without arrow)

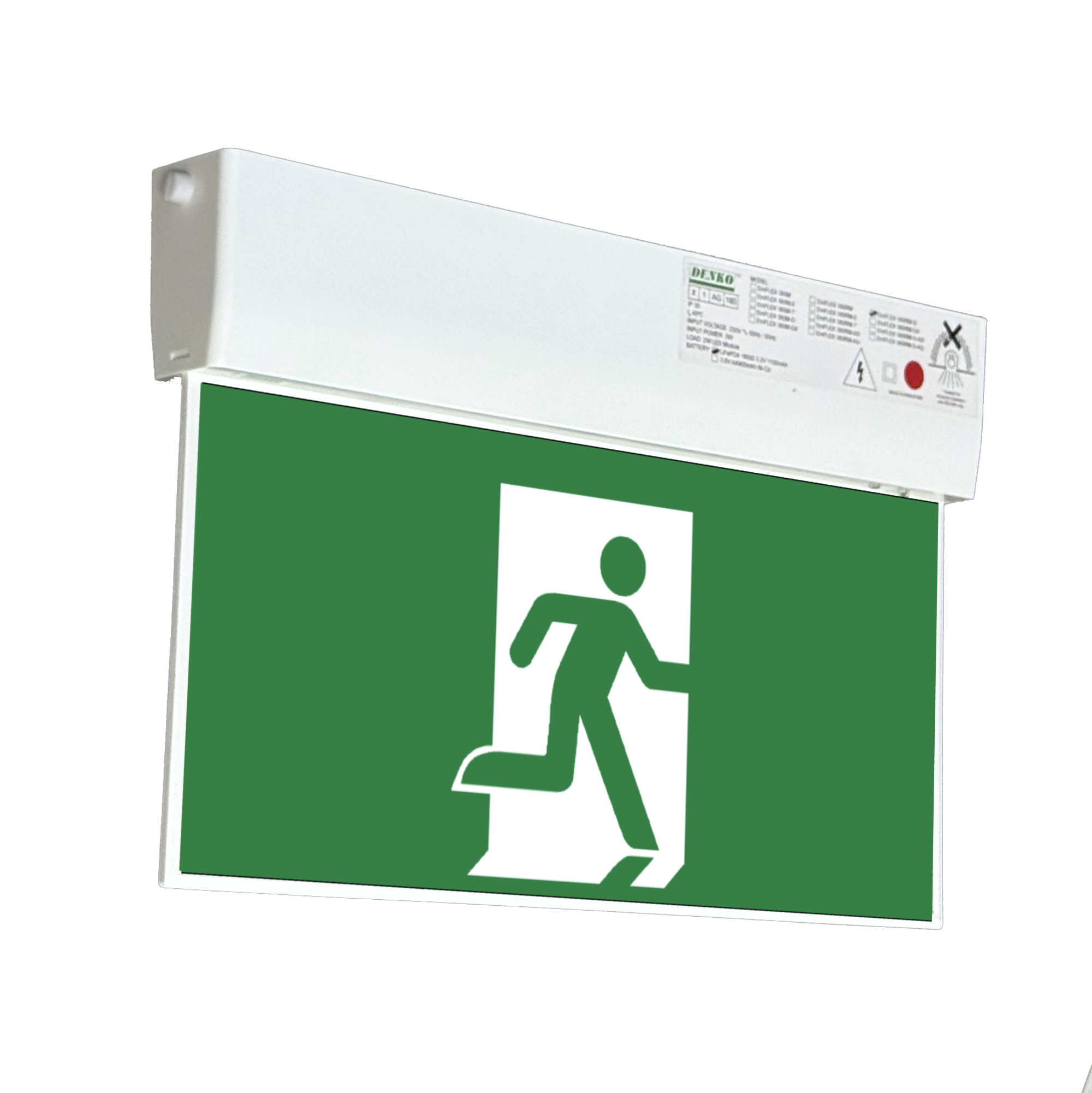

EmFLEX 360RM
EmFLEX 360RM-E
EmFLEX 360RM-T
EmFLEX 360RM-D (Double-sided)
EmFLEX 360RM-AD
EmFLEX 360RM-D-AD (Double-sided with arrow down)
EmFLEX 360RM-AU
EmFLEX 360RM-D-AU
(Double-sided with arrow up)
EmFLEX 360RM-DX (Double-sided without arrow)
